Image Context for Form Controls

You can configure form controls to have contextual images which assist users in forms. For example, you add an image of pills to a Text control which requires the user to enter medication they prescribe to patients.

Use the WebAdmin > Image Library page to add images. For more details refer to Image Library.

To add a contextual image to a form:

1. In WebAdmin select Forms.

2. Select the required form.

3. Navigate to the form control where you want to add a contextual image.

4. Select Maintain element settings.

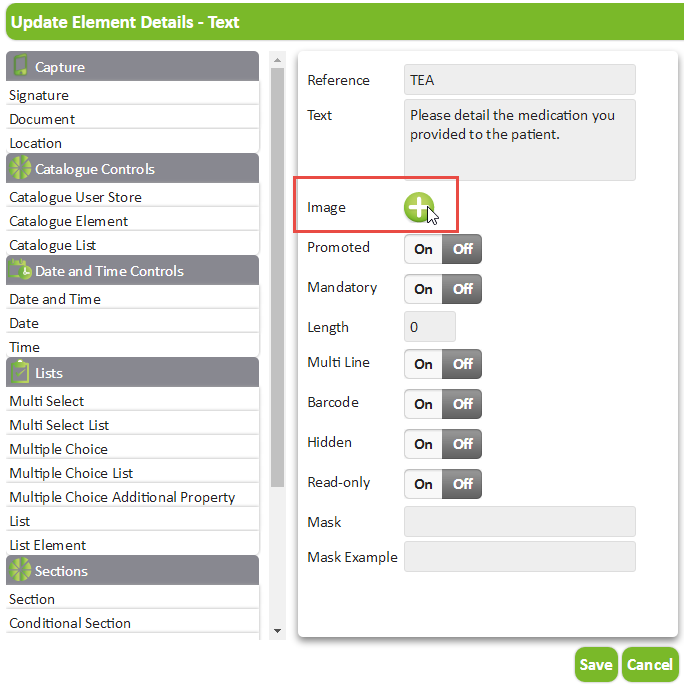

5. In the Update Element Details dialog, select Select Image.

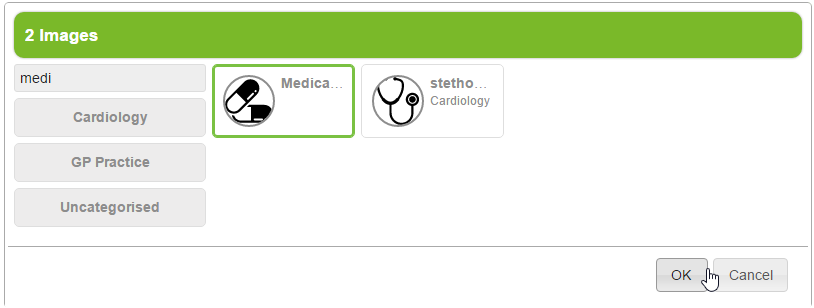

6. In the Select Image dialog:

   1. Select an image Category, or select the Search field and type to locate an image.

   2. Select the required image.

   3. Select OK.

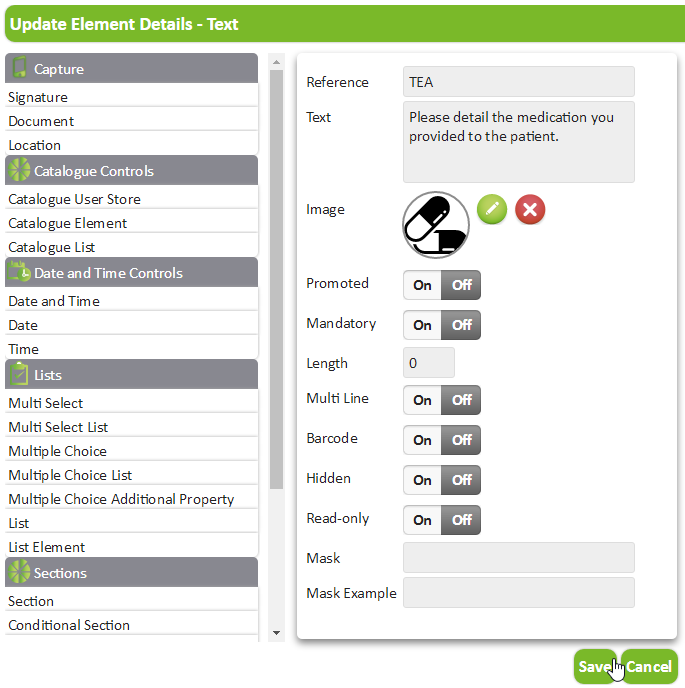

7. Select Save.



8. Save and Publish the form.
